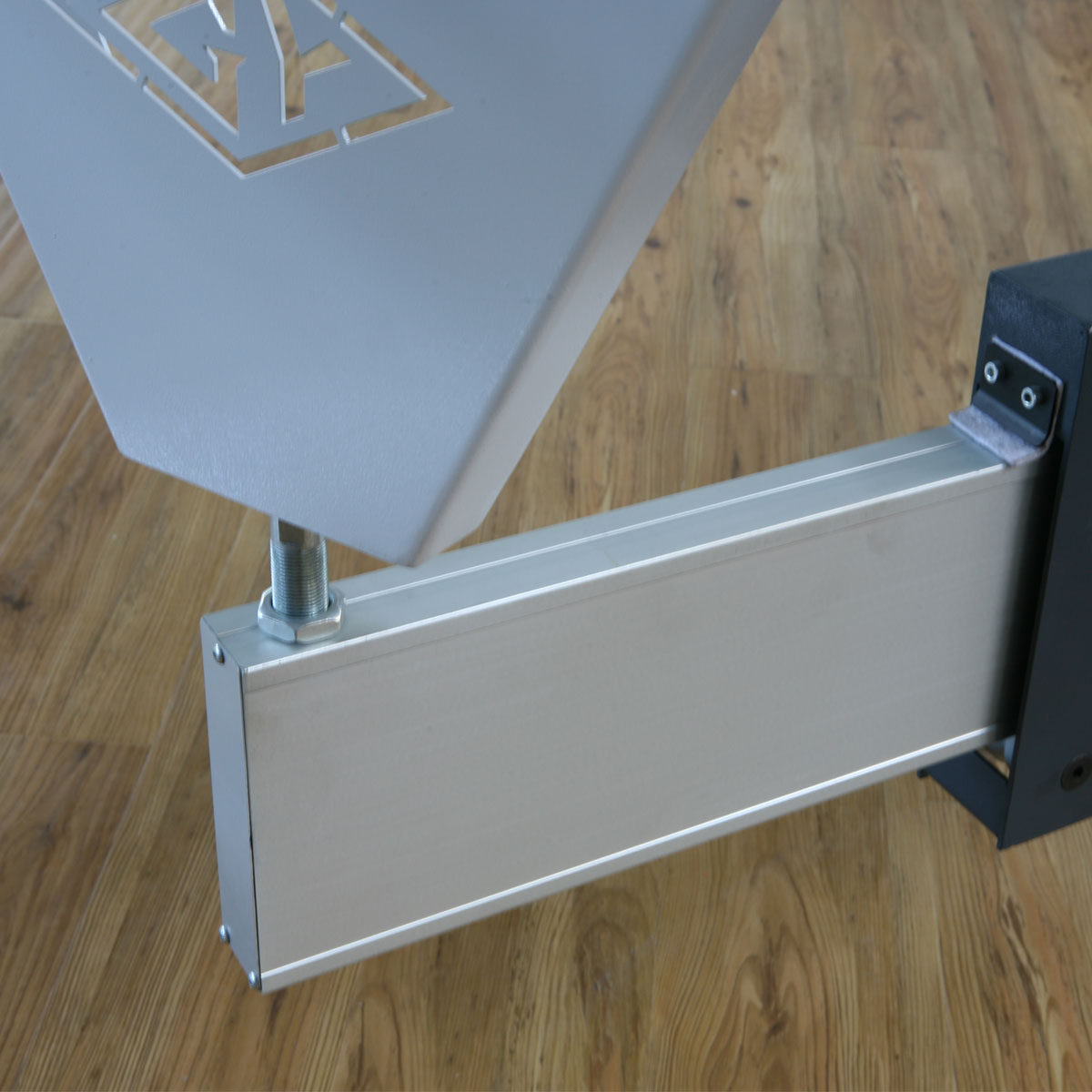

High strength telescopic arm processing and high strength |

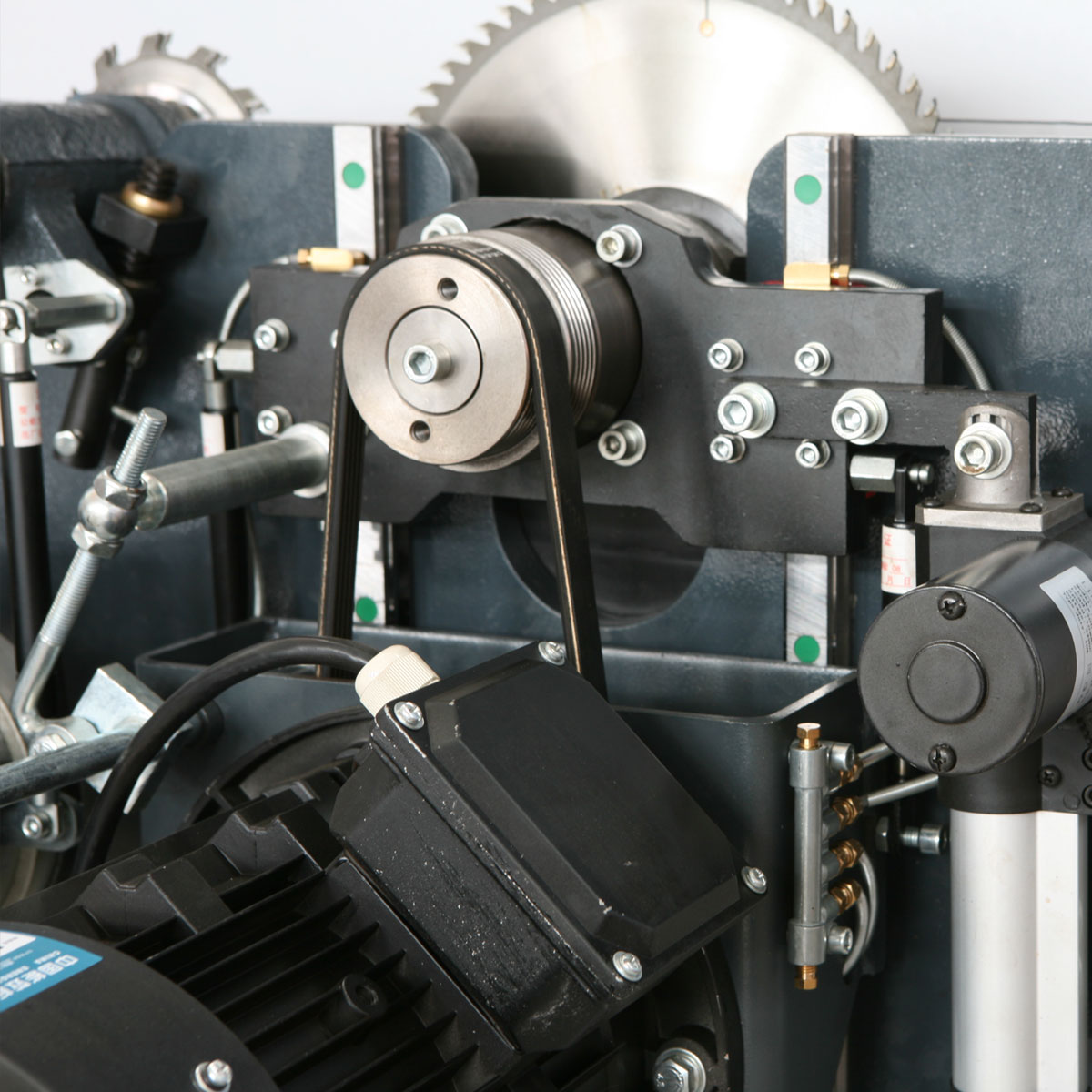

Ultra-quiet spindle at a high speed, Guanartee two years |
|
|
| Main shaft adopts linear guide electric lifting structure | High precision ultra wide bench with high machining accuracy |

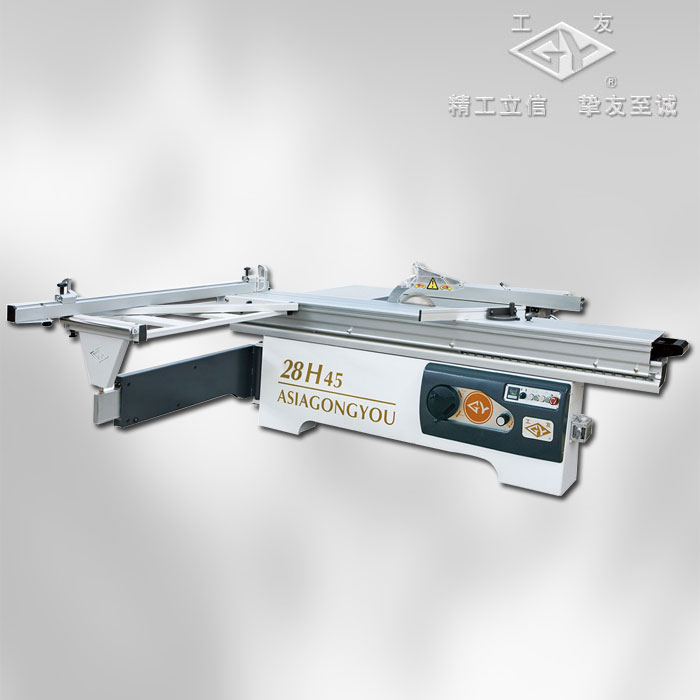

| Technical Specification | Unit | 28H45 |
| Max.moveable distance of table | mm | 2800 |
| Max.sawing thickness | mm | 75 |
| Main saw blade dia. | mm | ?300 |
| Main spindle dia. | mm | ?30 |
|
Main spindle speed |
r/min | 4000/5000 |
| Max.sawblade tilt angle | 45° | |
| Scoring saw spindle speed | r/min |
8700 |
| Main saw lifting motor | w | 70 |
| Scoring spindle dia. | mm | ?20 |
| Scoring sawblade dia. | mm | ?120 |
| Scoring saw motor | Kw | 1.1 |
| Spindle motor power | Kw | 5.5 |
| Overall dimensions | mm | 3050×3200×820 |
| Net.weight | kg | 720 |
